XS Stainless headers installed

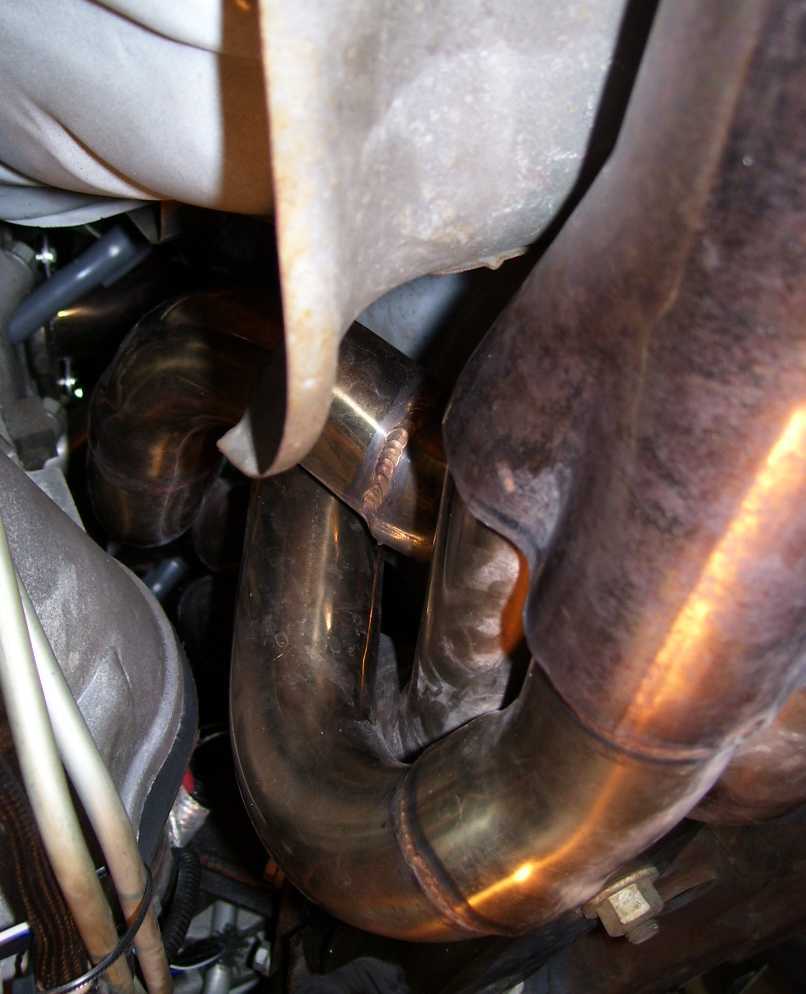

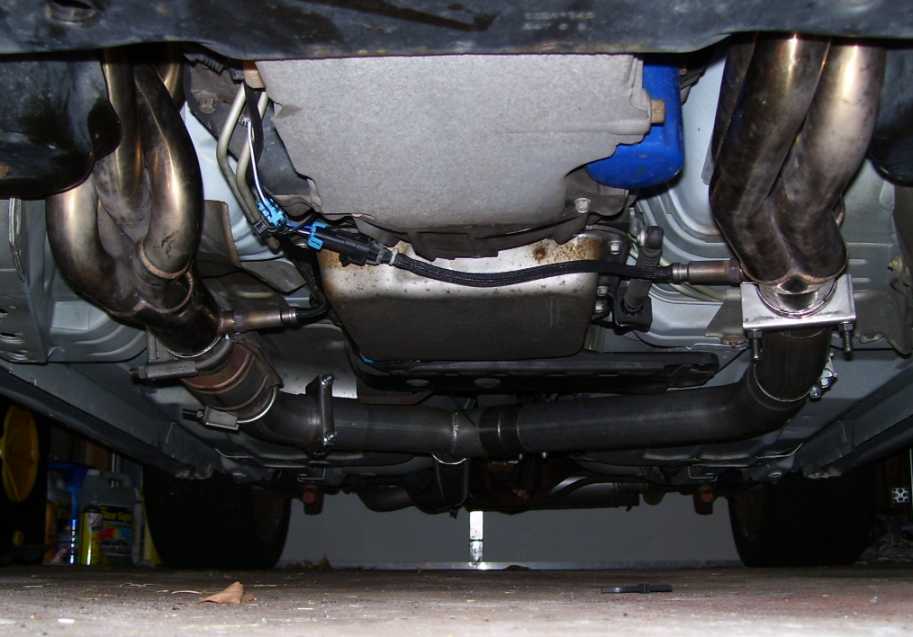

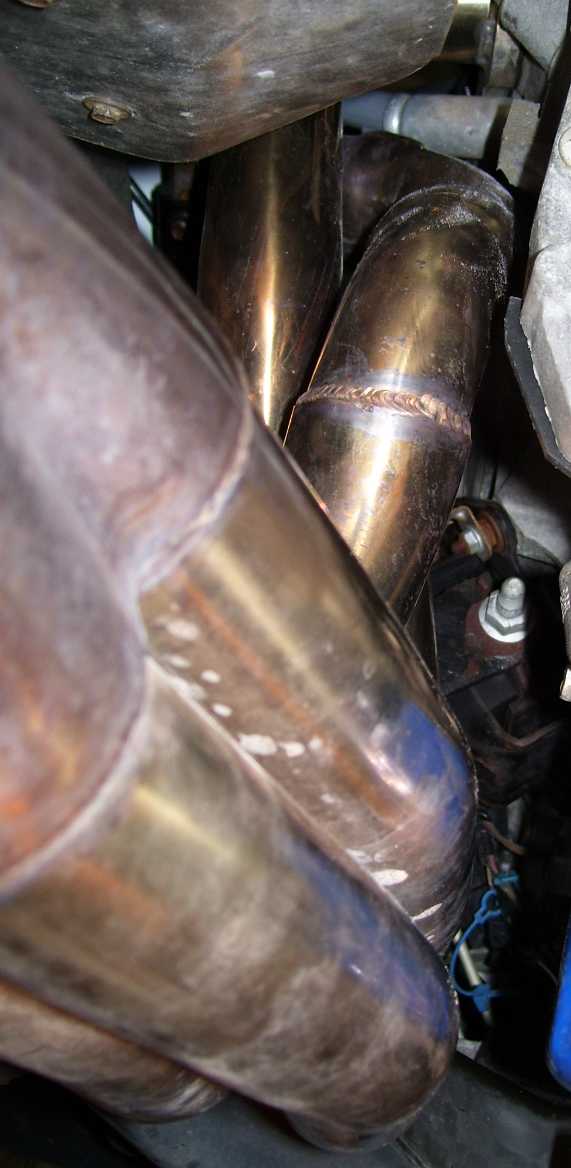

I got the used XS Stainless headers install on Thanksgiving. I still need to add the driver's side cat but it's running good for now. Nice looking headers and seem to fit really well. I got the emission's headers to try and keep it nice and legal but they have the 98-99 style EGR and AIR connections so I needed to grab some of those parts for the install. I couldn't get any good pictures from the top due to the AIR stuff in the way, but here are some pictures anyway. They are T321 stainless which is the highest quality available. The biggest issue with my headers was that the previous owner had the muffler shop cut the collectors off because the dual exhaust was welded to them. The passenger side header only has about 1 to 1-1/2" of collector past the O2 bung but the cat bolted up good and tight so it should be fine. And I did trim down the driver's side clamp after the picture to reduce a chance of contact with the speedbumps at work. I was able to keep all the factory heat shielding as well.
Attached Images
