06-10-2009, 07:18 PM
|
#1
|
Join Date: Sep 2004
Location: Haledon, NJ
Posts: 5,162
|

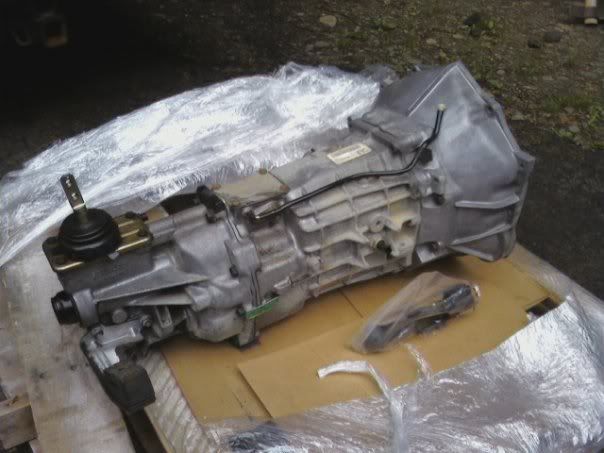

Finally here!
I already had the 700R4 out as well as the center console and the manual pedal assembly and clutch hydraulics all set. Now I can set up my clutch/PP/Bellhousing, drill the hole for the shifter, and throw it all in and back together. Can't friggin wait!

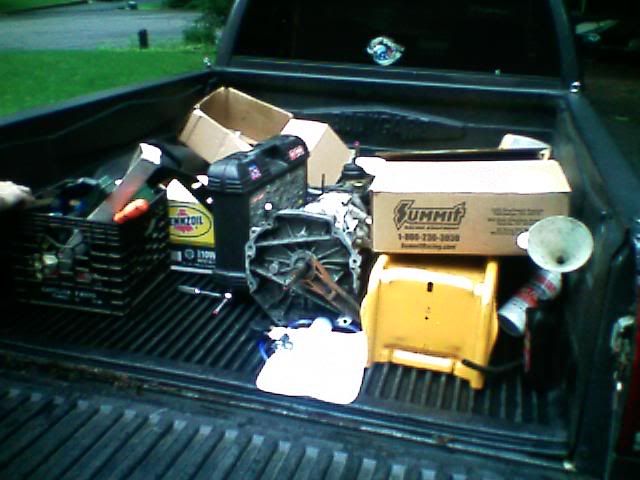

Got an awesome deal from a guy over on LS1tech who has a performance shop in TN. 41k miles, 30-day warranty, and he got me some odds and ends I still needed for the swap. Great guy to deal with.
__________________
1989 IROC-Z 355 LT1 T56 Swapped
2016 Chevy Colorado LT 3.6 v6
2008 Jeep Grand Cherokee Laredo 4.7L RIP 12/29/2016
1998 Honda CBR 600F3
2003 Yamaha FX140
|
|
|
|
06-10-2009, 07:20 PM
|
#2
|
|
Mongo the Meet Coordinator
Join Date: May 2008
Posts: 16,938
|
Nice!
__________________
Quote:
Originally Posted by KirkEvil
repo bigals turd gen and part it out to a loving home
|
|
|
|
|
|
06-10-2009, 07:21 PM
|
#3
|
|
Mr Fantastic
Join Date: Aug 2004
Location: West Milford NJ
Posts: 7,917
|
god those transmissions are huge
__________________
Matt
B18B1 FTW
|
|
|
|
|
06-10-2009, 07:25 PM
|
#4
|
Join Date: Apr 2008
Location: Delran
Posts: 6,785
|
yay for six speeds
|
|
|
|
|
06-10-2009, 07:33 PM
|
#5
|
Join Date: Dec 2004
Location: manchester, NJ
Posts: 1,775
|
Quote:
Originally Posted by GP99GT
god those transmissions are huge
|
LOTS! of overdrive... heheh.... good luck withyour install man... should be nice when done....
__________________
97 Firebird Formula - 383LT1
15 Subaru WRX - 2.0L-turbo
|
|
|
|
|
06-10-2009, 07:49 PM
|
#6
|
|
Meet Coordinator
Join Date: Jan 2008
Location: brick/pt. pleasant beach
Posts: 19,368
|
thats sick ted. do you have to do anything special for the driveshaft or crossmember? how about reverse lights?
Last edited by sweetbmxrider; 06-10-2009 at 07:49 PM.
|
|
|
|
|
06-10-2009, 07:55 PM
|
#7
|
Join Date: Jun 2007
Location: Arm pit of the world... NJ
Posts: 2,677
|
Quote:
Originally Posted by GP99GT
god those transmissions are heavy
|
Fixed.
Good luck with the swap, Ted.
__________________
John
|
|
|
|
|
06-10-2009, 08:08 PM
|
#8
|
|
Mr Fantastic
Join Date: Aug 2004
Location: West Milford NJ
Posts: 7,917
|
glad i have a T5 looking at that thing  the broken one i have in my garage probably only weighs about 60lbs
__________________
Matt
B18B1 FTW
|
|
|
|
|
06-10-2009, 08:20 PM
|
#9
|
Join Date: Sep 2004
Location: Haledon, NJ
Posts: 5,162
|
Thanks for the good luck guys! It is really heavy but 6th gear will be nice on those 2hr. highway trips down the shore.
Quote:
Originally Posted by sweetbmxrider
thats sick ted. do you have to do anything special for the driveshaft or crossmember? how about reverse lights?
|

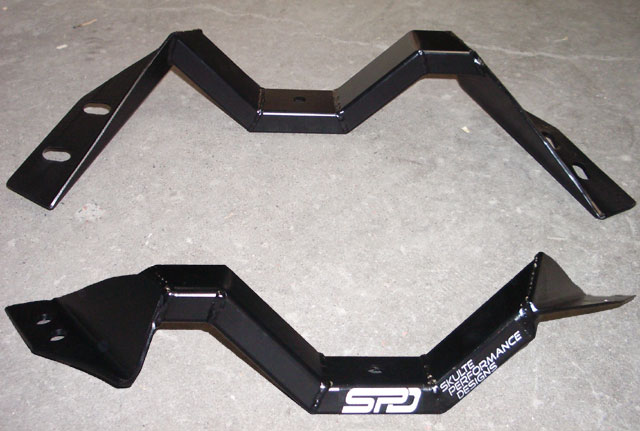

Same driveshaft, in fact I picked up an aluminum one a few months ago I'll finally get to throw in. Spohn, Skulte, and a couple of others make a crossmember for thirdgens using a T56 but Skulte is the only one who makes one for use with Hooker Super Comp LT headers as well, so I had to go with that one. It's an awesome design, the crossmember tucks up into the trans tunnel so the exhaust can run underneath it.
Reverse and brake lights will have to get rewired, no big deal though.
__________________
1989 IROC-Z 355 LT1 T56 Swapped
2016 Chevy Colorado LT 3.6 v6
2008 Jeep Grand Cherokee Laredo 4.7L RIP 12/29/2016
1998 Honda CBR 600F3
2003 Yamaha FX140
Last edited by Teds89IROC; 06-10-2009 at 08:21 PM.
|
|
|
|
|
06-10-2009, 08:23 PM
|
#10
|
|
Meet Coordinator
Join Date: Jan 2008
Location: brick/pt. pleasant beach
Posts: 19,368
|
ah very nice
|
|
|
|
|
06-10-2009, 08:23 PM
|
#11
|
Join Date: Jun 2007
Location: Arm pit of the world... NJ
Posts: 2,677
|
Quote:
Originally Posted by GP99GT
glad i have a T5 looking at that thing the broken one i have in my garage probably only weighs about 60lbs |
The t56 is only about 100lbs more.
__________________
John
|
|
|
|
|
06-10-2009, 08:48 PM
|
#12
|
|
13 Second Club
Join Date: Feb 2007
Posts: 875
|
Quote:
Originally Posted by Featherburner
The t56 is only about 100lbs more. |
and twice as strong.
__________________
yes, my hog is bigger then yours
|
|
|
|
|
06-10-2009, 08:54 PM
|
#13
|
|
Mr Fantastic
Join Date: Aug 2004
Location: West Milford NJ
Posts: 7,917
|
Quote:
Originally Posted by EchoMirage
and twice as strong.
|
my T5 is rated to 330ft. lbs....a t56 is 440
__________________
Matt
B18B1 FTW
|
|
|
|
|
06-10-2009, 09:05 PM
|
#14
|
|
13 Second Club
Join Date: Feb 2007
Posts: 875
|
__________________
yes, my hog is bigger then yours
|
|
|
|
|
06-10-2009, 09:21 PM
|
#15
|
Join Date: Sep 2004
Location: Haledon, NJ
Posts: 5,162
|
Quote:
Originally Posted by GP99GT
my T5 is rated to 330ft. lbs....a t56 is 440
|
T5 wouldn't work with the 350, I made just under 300 rwtq through the automatic.
__________________
1989 IROC-Z 355 LT1 T56 Swapped
2016 Chevy Colorado LT 3.6 v6
2008 Jeep Grand Cherokee Laredo 4.7L RIP 12/29/2016
1998 Honda CBR 600F3
2003 Yamaha FX140
|
|
|
|
|
06-10-2009, 11:06 PM
|
#16
|
|
Admin.
Join Date: Aug 2005
Location: Hamilton, NJ
Posts: 20,165
|
Quote:
Originally Posted by Teds89IROC
Reverse and brake lights will have to get rewired, no big deal though.
|
Why brake lights?
Pigtails for reverse light, reverse lockout, vss.: http://www.eficonnection.com/eficonn..._pigtails.aspx
__________________
Vent Windows Forever!
The looser the waistband, the deeper the quicksand. Or so I have read.
Feather-light suspension, Konis just couldn't hold. I'm so glad I took a look inside your showroom doors.
Hey everybody, it's good to have you on the Baba-too-da-ba-too-ba-ba-buh-doo-ga-ga-bop-a-dop
|
|
|
|
|
06-10-2009, 11:47 PM
|
#17
|
Join Date: Sep 2004
Location: Haledon, NJ
Posts: 5,162
|
Awesome website, thanks! I didn't really examine the connectors for the brake lights but briefly looking at them they look different.
What does the VSS do? Or is that what sends the signal for the electrical speedometer? Mine is mechanical and I saw converters go for a few hundred bucks, best option is probably just upgrade to an electrical speedometer along with the other gauges.
__________________
1989 IROC-Z 355 LT1 T56 Swapped
2016 Chevy Colorado LT 3.6 v6
2008 Jeep Grand Cherokee Laredo 4.7L RIP 12/29/2016
1998 Honda CBR 600F3
2003 Yamaha FX140
|
|
|
|
|
06-11-2009, 05:35 AM
|
#18
|
|
Banned Camp Director Emeritus
Join Date: Aug 2004
Location: Somerset County
Posts: 8,395
|
there is a company that makes a box that drives a speedometer cable off an electronic signal from the VSS. I forget the name of the company though.
__________________
Quote:
Originally Posted by baddest434
and 1 more smart ass answer by you and i'm going to reach into this monitor and grab you by the throat
|
|
|
|
|
|
06-11-2009, 05:48 AM
|
#19
|
Join Date: Apr 2008
Location: Delran
Posts: 6,785
|
yeah the vss is an electronic signal for the speedo. cable x makes a kit. its like 300 for a module. autometer makes one too
|
|
|
|
|
06-11-2009, 02:53 PM
|
#20
|
|
Mr Fantastic
Join Date: Aug 2004
Location: West Milford NJ
Posts: 7,917
|
Quote:
Originally Posted by Teds89IROC
T5 wouldn't work with the 350, I made just under 300 rwtq through the automatic.
|
i know, i was just saying it can handle more than half the power
mines gonna be close to 400 ft/lbs at the wheels...ill just be veryyy gentle
__________________
Matt
B18B1 FTW
|
|
|
|
|
06-12-2009, 06:04 PM
|
#21
|
Join Date: Sep 2004
Location: Haledon, NJ
Posts: 5,162
|
Quote:
Originally Posted by GP99GT
i know, i was just saying it can handle more than half the power
mines gonna be close to 400 ft/lbs at the wheels...ill just be veryyy gentle |
just upgrade to a T56
Update:
Just have to bleed the slave cylinder, mount the resevoir to the firewall, drive shaft and Y-pipe, fill the trans with fluid...then it's drivable. Then I have to do the wiring and make the hole for the shifter pretty and put the console back together, I plan on driving it tomorrow
__________________
1989 IROC-Z 355 LT1 T56 Swapped
2016 Chevy Colorado LT 3.6 v6
2008 Jeep Grand Cherokee Laredo 4.7L RIP 12/29/2016
1998 Honda CBR 600F3
2003 Yamaha FX140
Last edited by Teds89IROC; 06-12-2009 at 06:06 PM.
|
|
|
|
|
06-12-2009, 06:08 PM
|
#22
|
|
Mr Fantastic
Join Date: Aug 2004
Location: West Milford NJ
Posts: 7,917
|
if i upgrade, itll be to a Gforce T5 probably...right now its a T5-Z spec
__________________
Matt
B18B1 FTW
|
|
|
|
|
06-12-2009, 07:14 PM
|
#23
|
Join Date: Sep 2006
Location: north jersey
Posts: 1,680
|
before the install we got some "overnight parts from JAPAN"
|
|
|
|
|
06-12-2009, 07:17 PM
|
#24
|
Join Date: Apr 2008
Location: Delran
Posts: 6,785
|
looks more like detroit lol
|
|
|
|
|
06-13-2009, 09:05 PM
|
#25
|
Join Date: Sep 2004
Location: Haledon, NJ
Posts: 5,162
|
Well, IT WORKS! I still have to wire up the "N" safety and everything else, waiting on those pigtails, but I had the rear in the air and tried all the gears and everything is awesome!
__________________
1989 IROC-Z 355 LT1 T56 Swapped
2016 Chevy Colorado LT 3.6 v6
2008 Jeep Grand Cherokee Laredo 4.7L RIP 12/29/2016
1998 Honda CBR 600F3
2003 Yamaha FX140
|
|
|
|
