Hey guys, I've been a member for awhile but I haven't visited the site in a long time. I was out in PA taking classes at Wyotech and I had a chance to overhaul my entire car. I just wanted to say Hi again and hopefully start coming to meets and taking the car to the track when I get it insured and everything is broken in. Here is a bunch of pics of everything I did to the car.

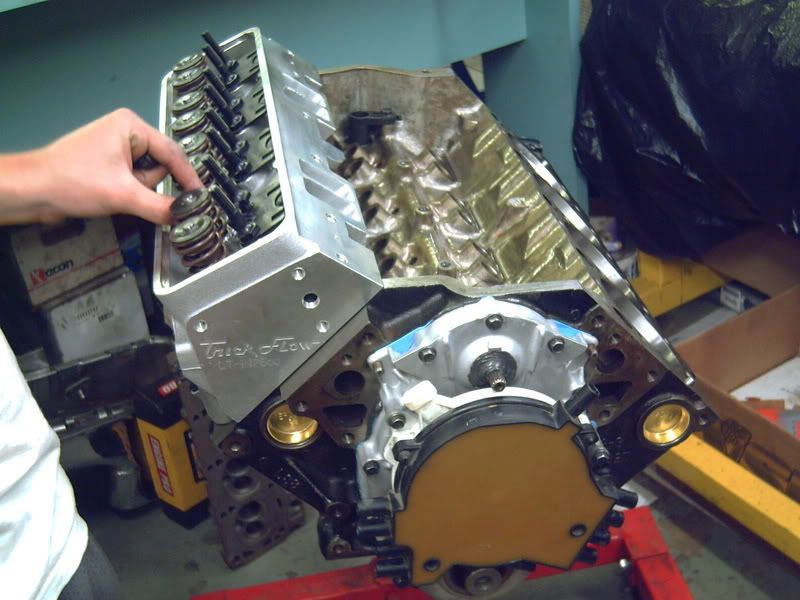

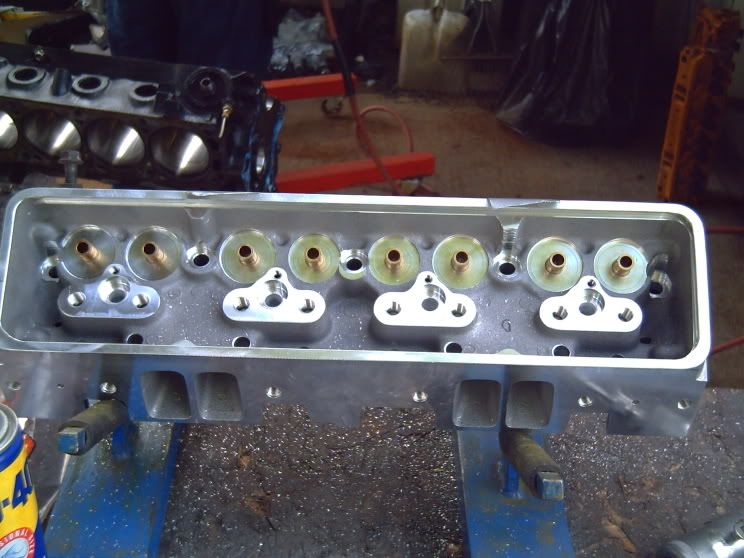

205cc TFS heads P&P by me
http://i78.photobucket.com/albums/j9...t/c05751dd.jpg

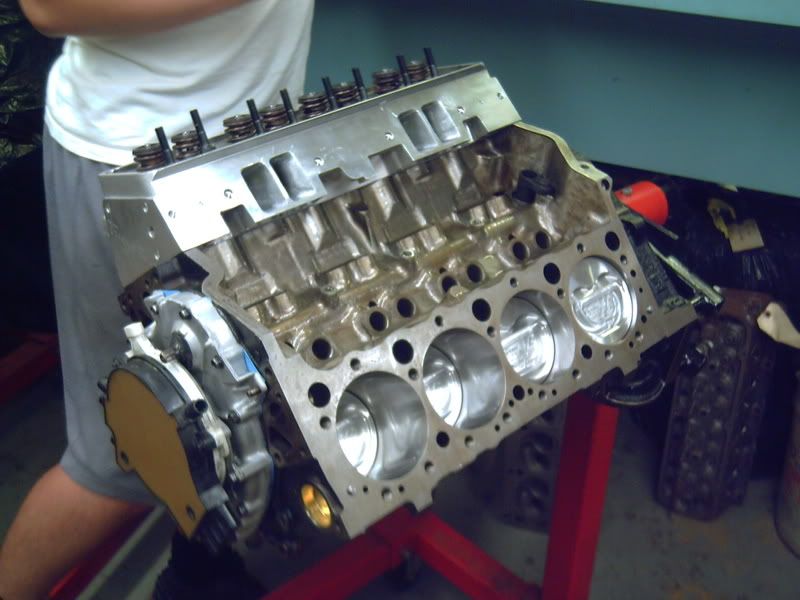

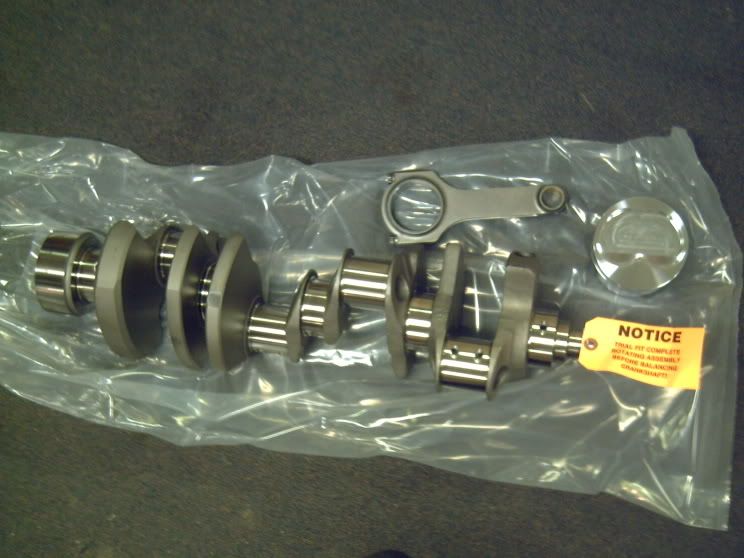

Forged Eagle crank, CAT 6" rods, -11cc dished SRP piston
http://i78.photobucket.com/albums/j9...t/9f6e8817.jpg

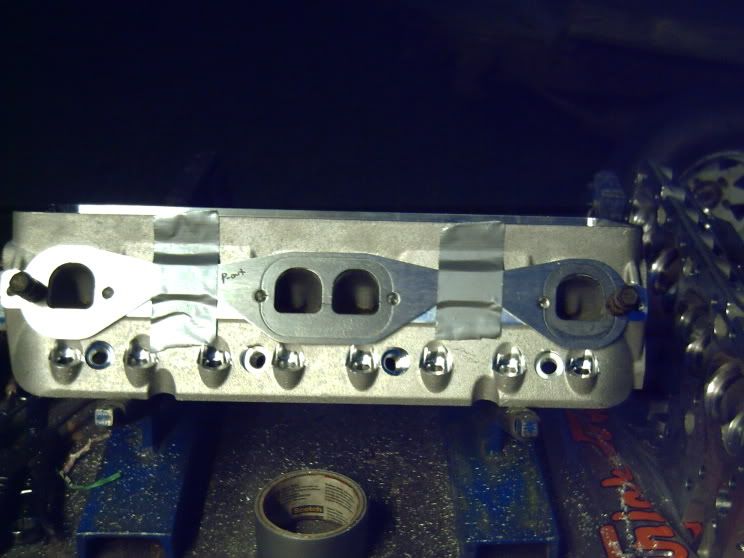

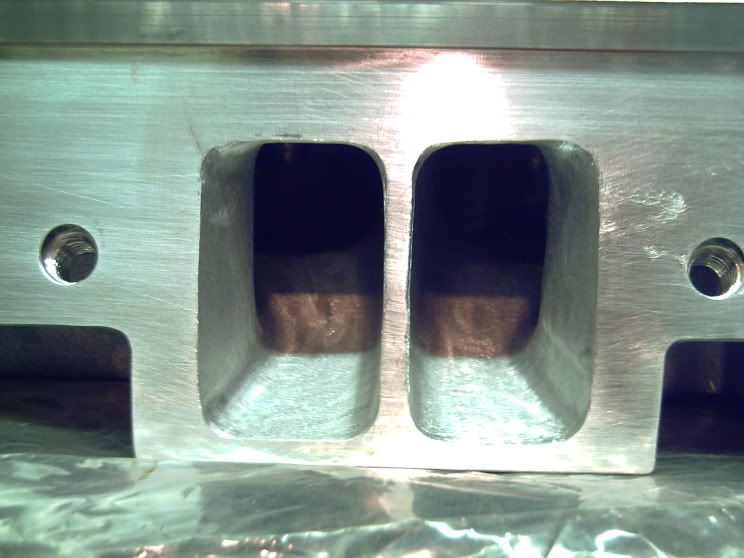

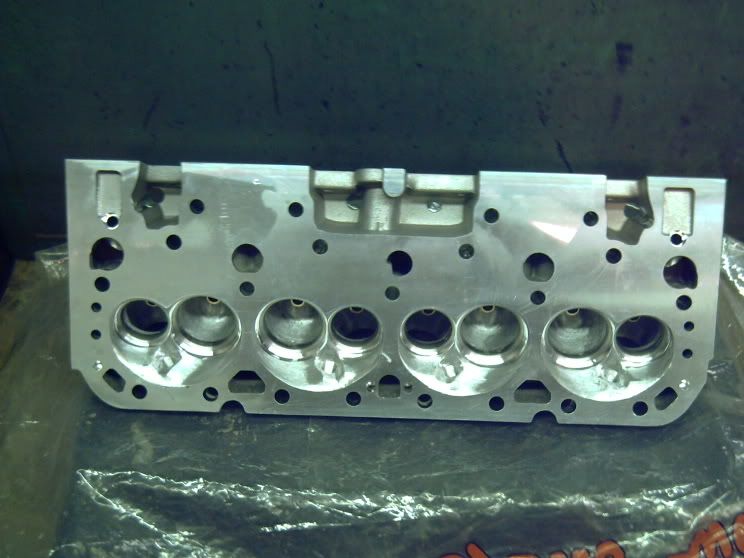

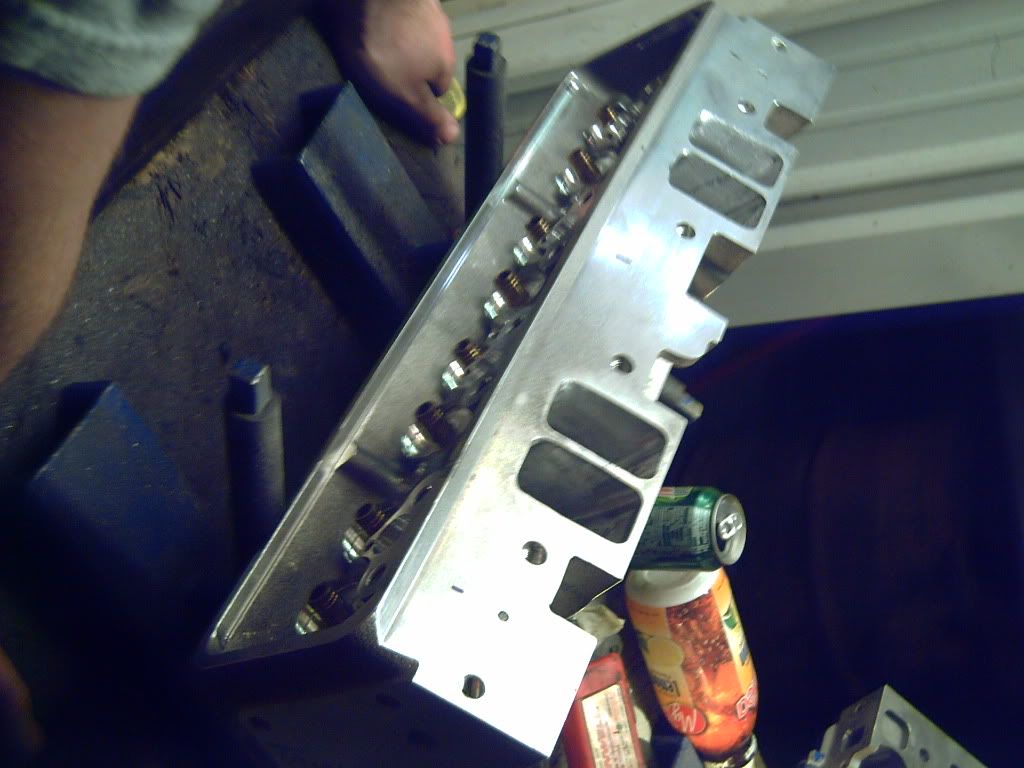

some more pics of the heads
http://i78.photobucket.com/albums/j9...t/e19073fa.jpg
http://i78.photobucket.com/albums/j9...t/a2e2aaa2.jpg
http://i78.photobucket.com/albums/j9...t/cf8a44f7.jpg
http://i78.photobucket.com/albums/j9...t/a13f08c2.jpg

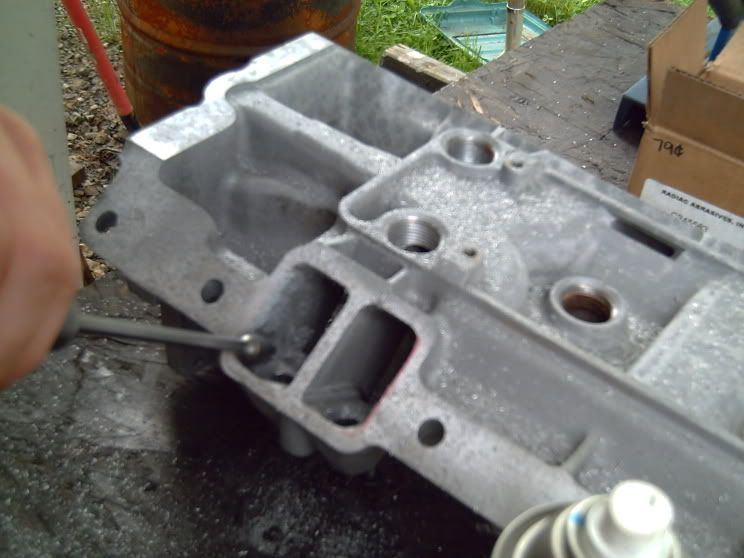

Heres the intake
http://i78.photobucket.com/albums/j9...t/e6b114a1.jpg

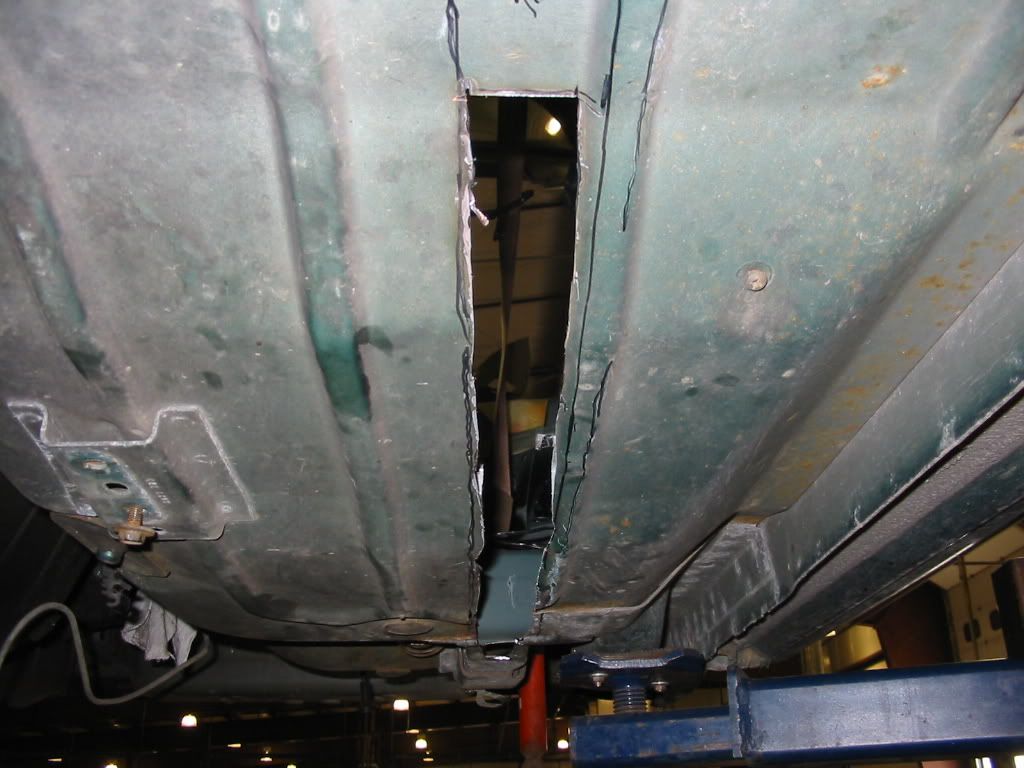

Heres how I welded in SFCs using 2x3 .120 wall tubing
http://i78.photobucket.com/albums/j9...t/a64fbbc3.jpg
http://i78.photobucket.com/albums/j9...t/2a28be4d.jpg
http://i78.photobucket.com/albums/j9...t/b17106d8.jpg
http://i78.photobucket.com/albums/j9...t/b674839e.jpg

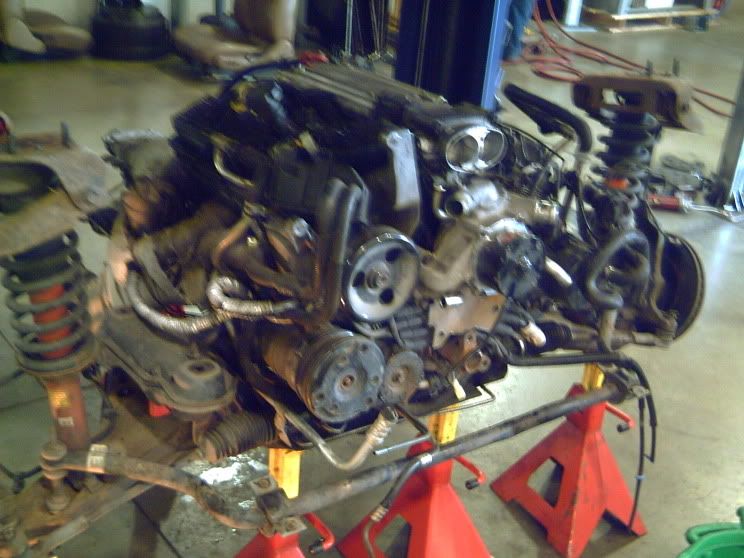

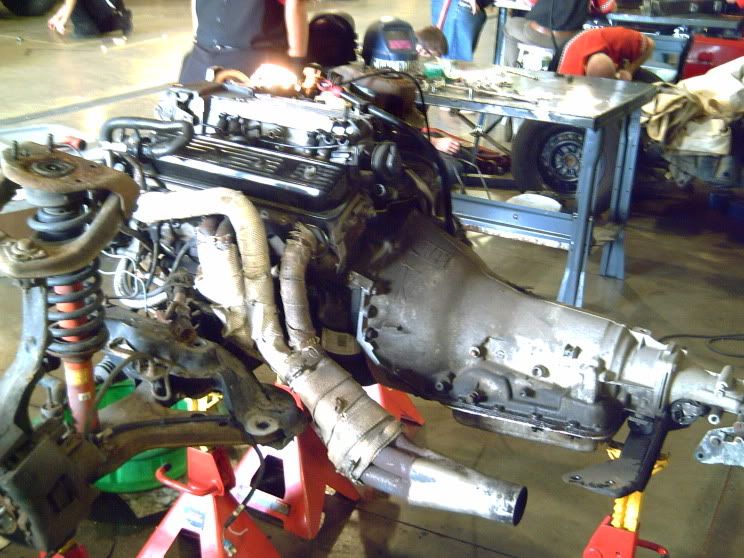

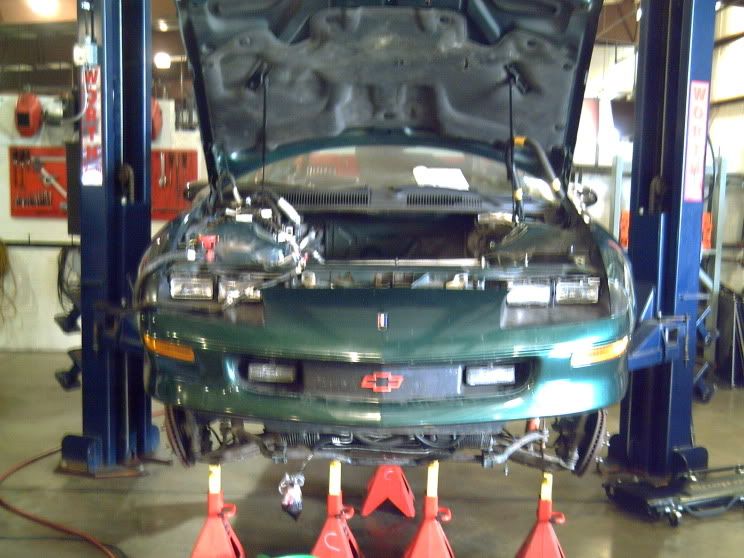

Here is the old engine, its for sale.
http://i78.photobucket.com/albums/j9...t/52d5d8ee.jpg
http://i78.photobucket.com/albums/j9...t/2dc8772d.jpg
http://i78.photobucket.com/albums/j9...t/1ae64cc5.jpg

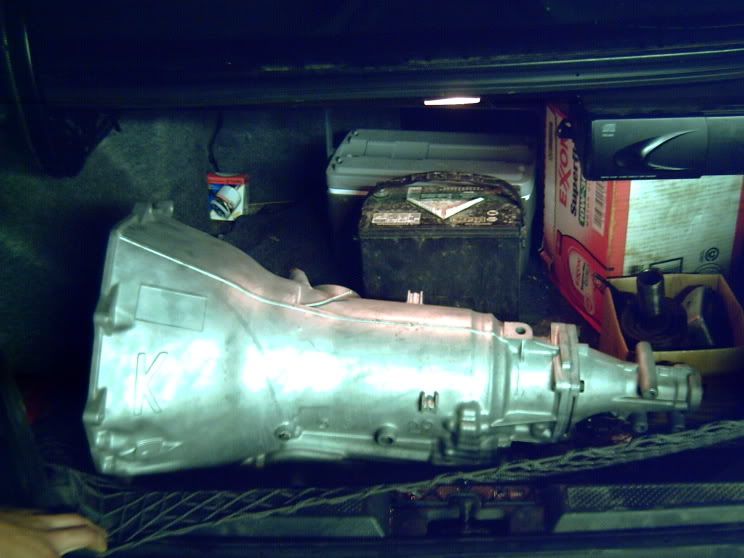

A pic of the built 4L60E, builder said it should handle 900hp
http://i78.photobucket.com/albums/j9...t/b5bd53e4.jpg

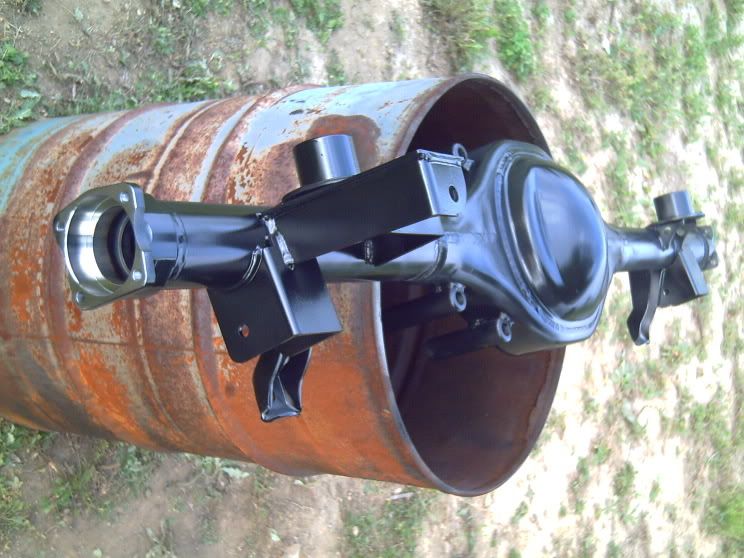

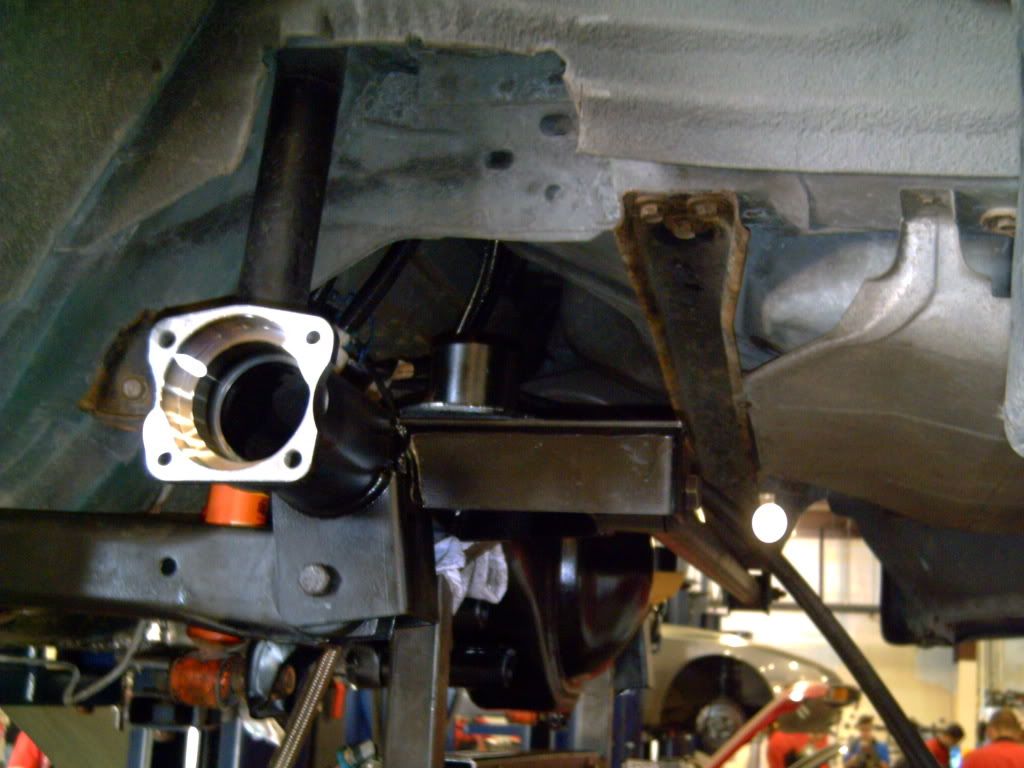

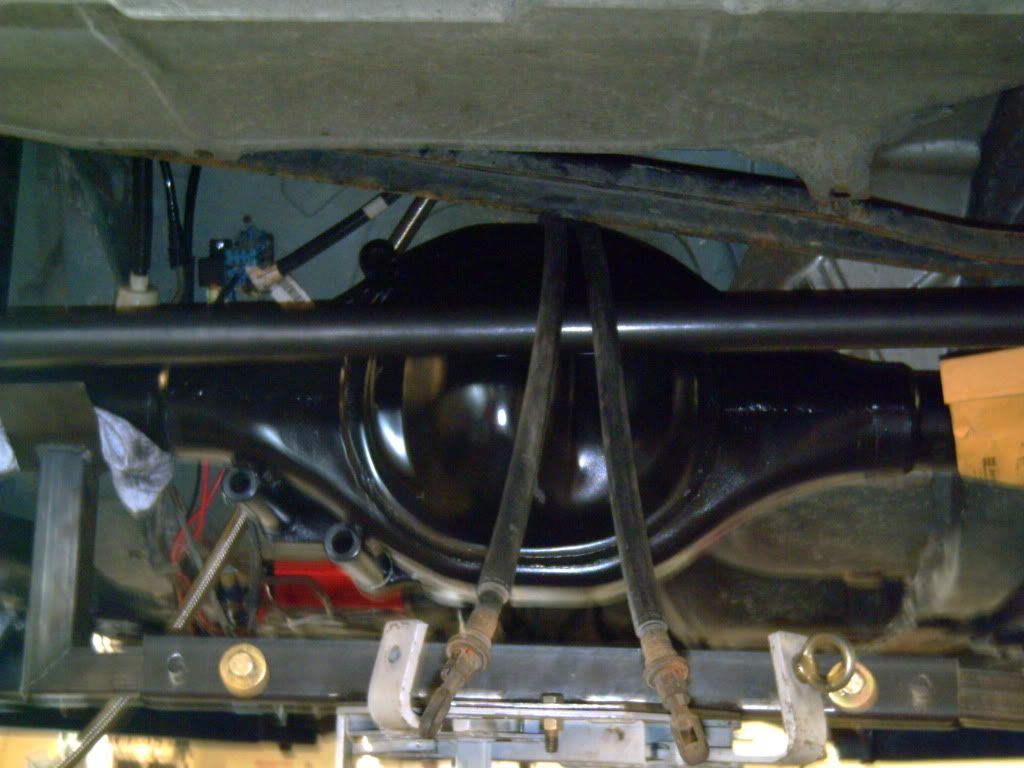

Moser 9" with 3.73 gears and Detroit Locker
http://i78.photobucket.com/albums/j9...t/89018f41.jpg
http://i78.photobucket.com/albums/j9...t/8c3bec8f.jpg
http://i78.photobucket.com/albums/j9...t/41022354.jpg

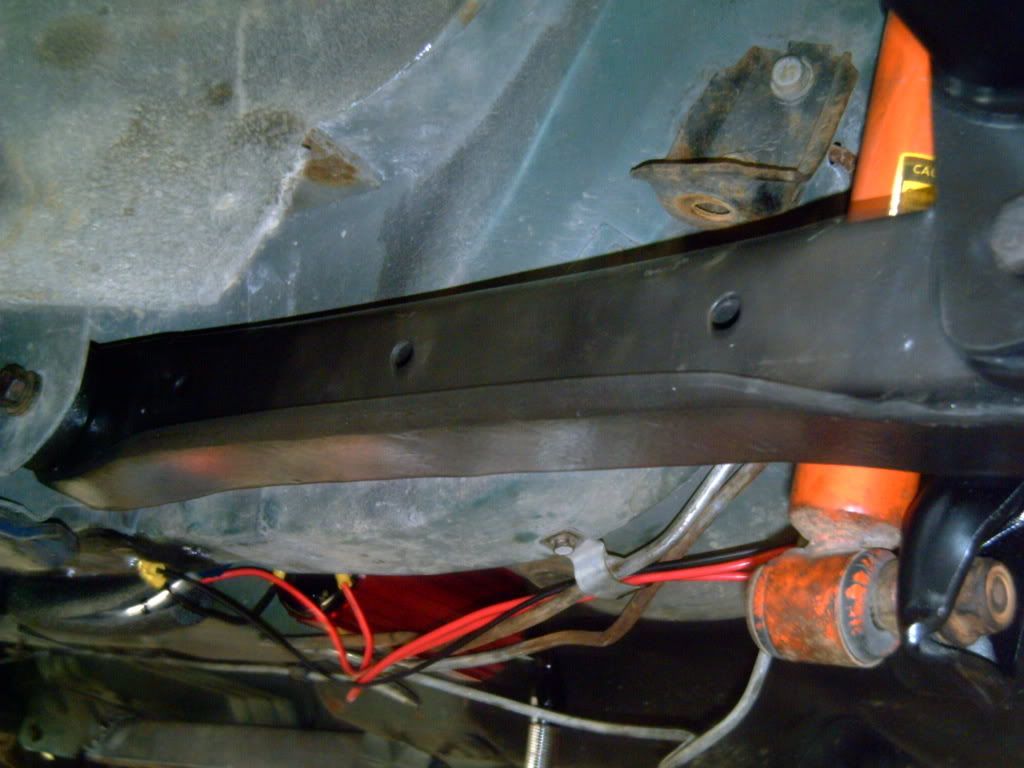

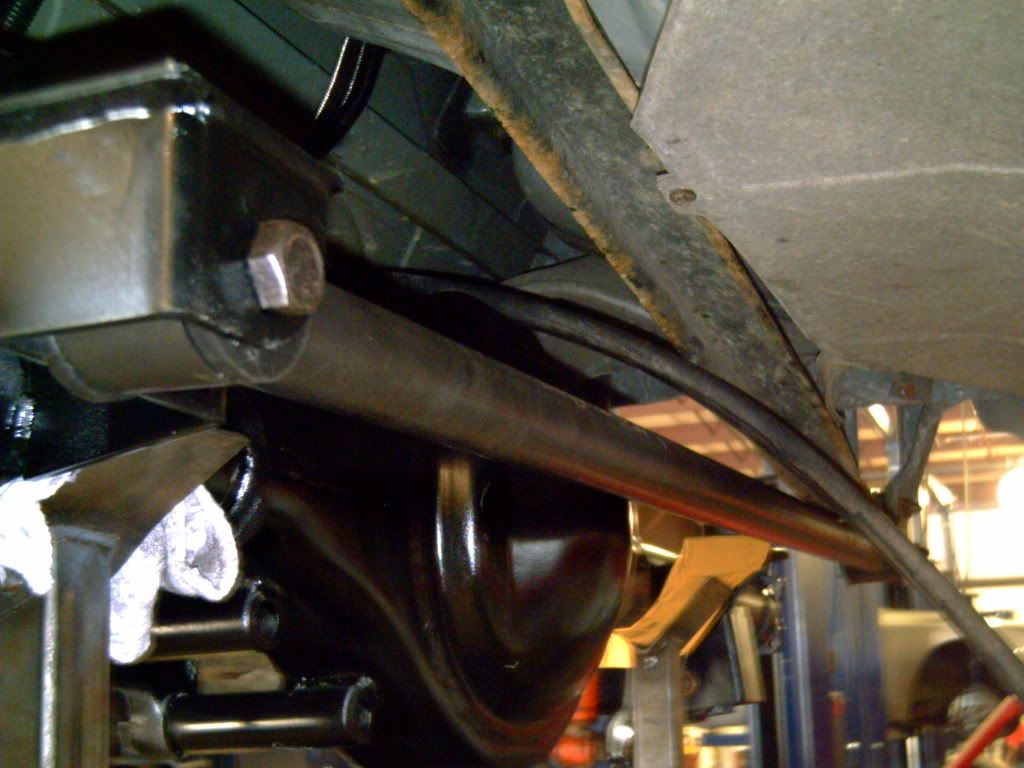

Boxed traling arms and panhard I made
http://i78.photobucket.com/albums/j9...t/c56c182b.jpg
http://i78.photobucket.com/albums/j9...t/96b34d50.jpg

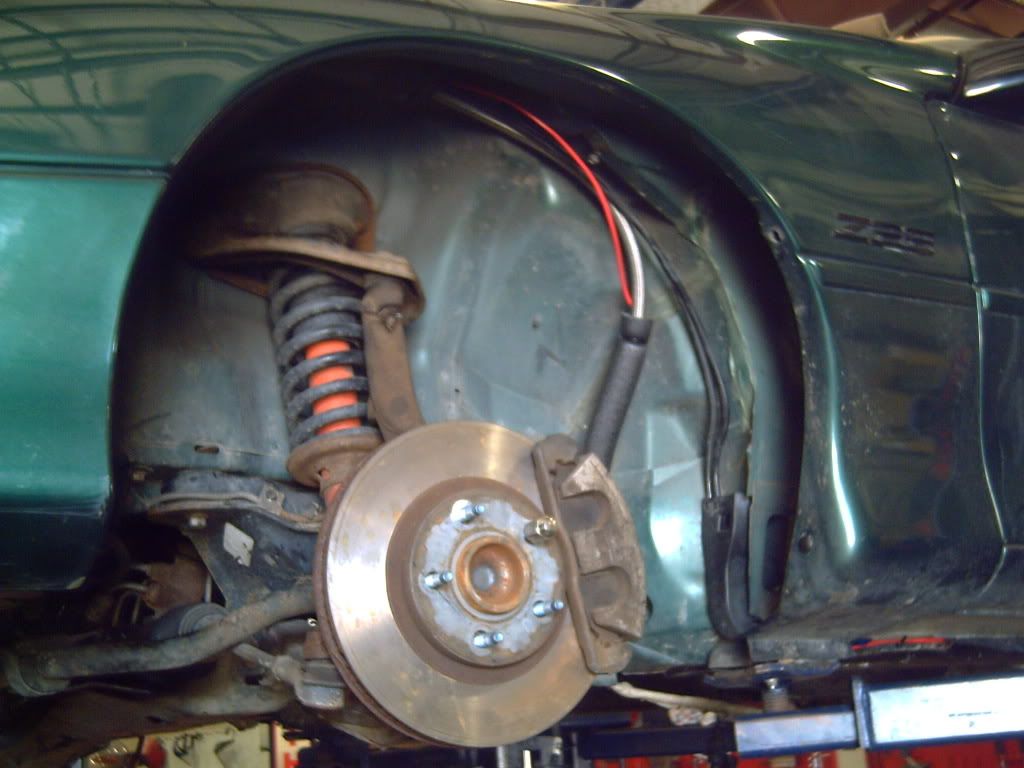

I didn't get too many pics of the fuel system, but its a Walboro 255 intake pump with -8 steel braided line going into the A1000 pump, then -8 into the fuel rails.
http://i78.photobucket.com/albums/j9...t/bdc18e14.jpg
http://i78.photobucket.com/albums/j9...t/bdaad0f7.jpg

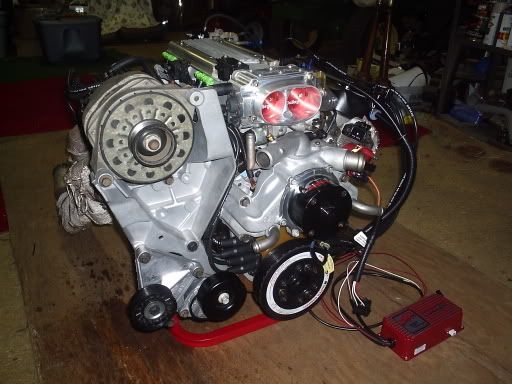

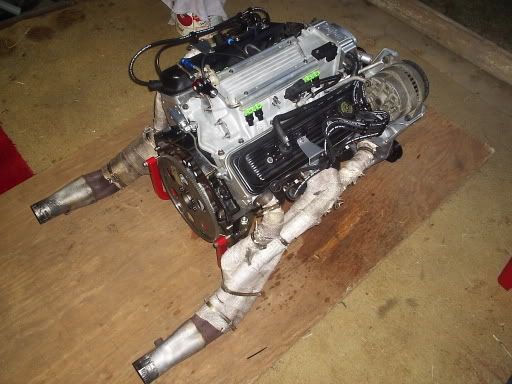

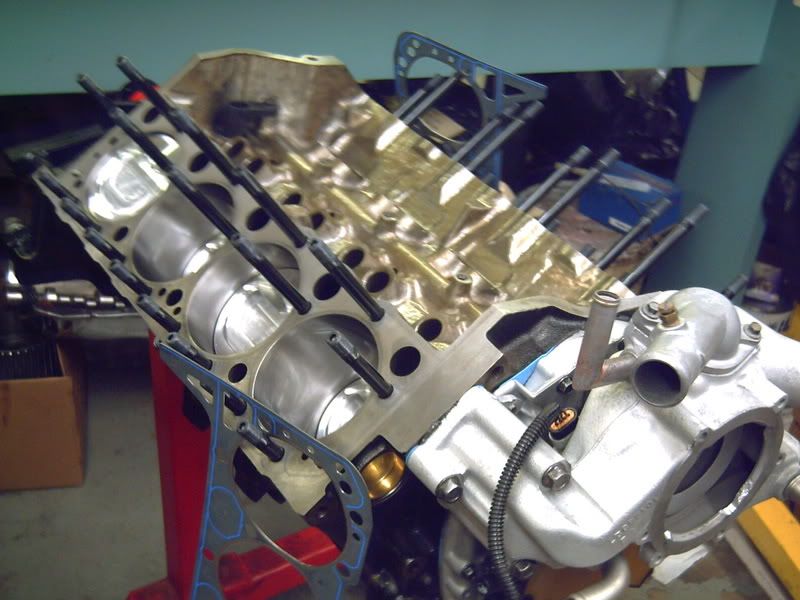

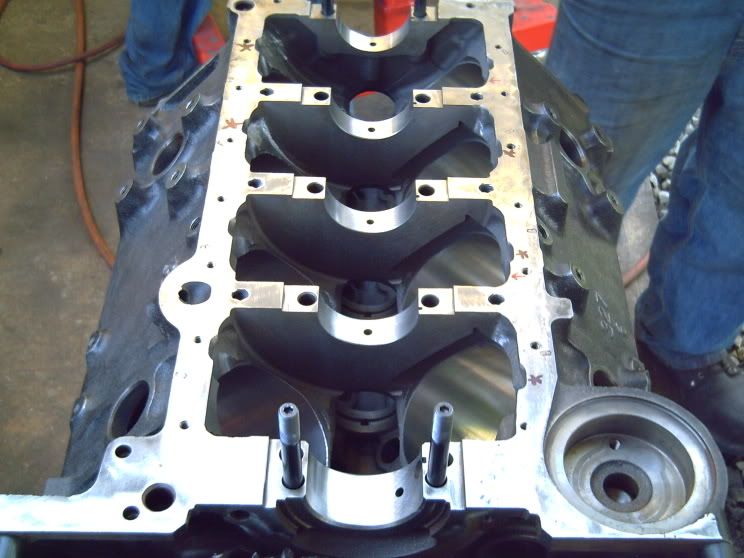

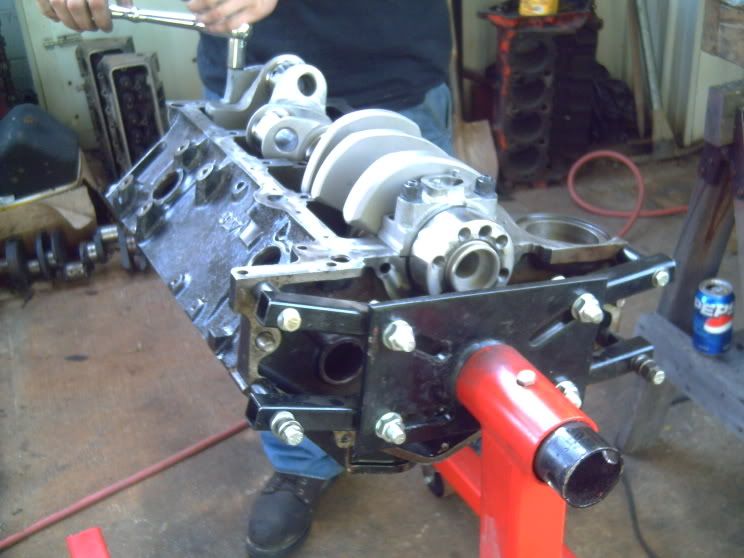

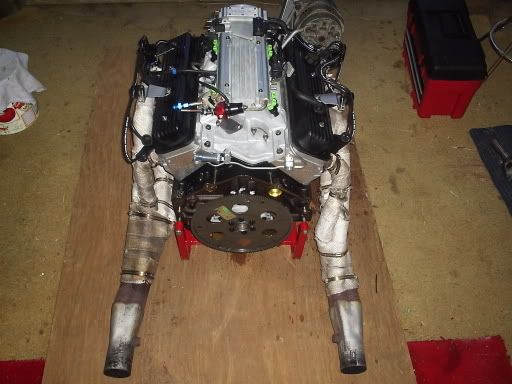

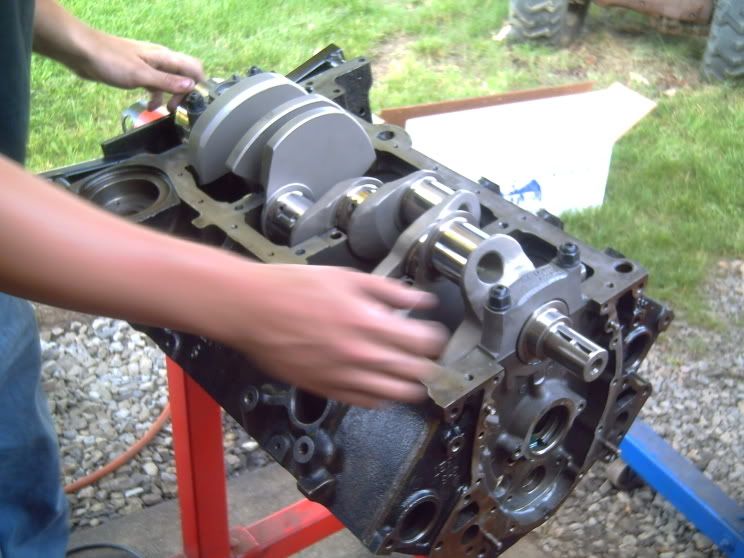

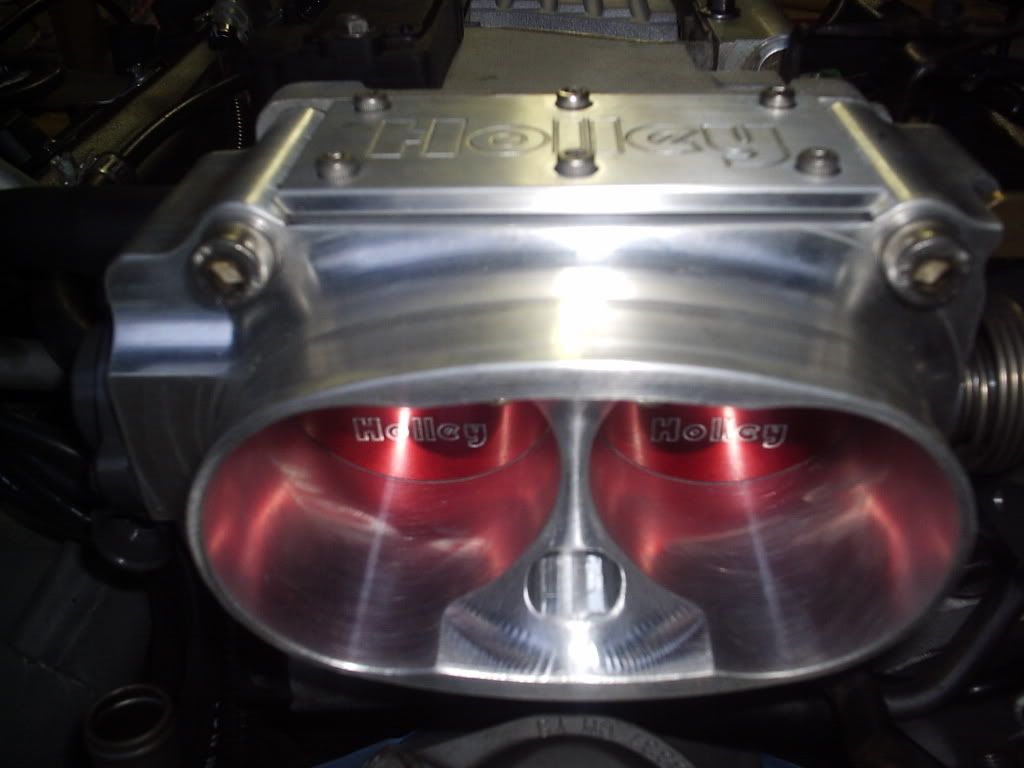

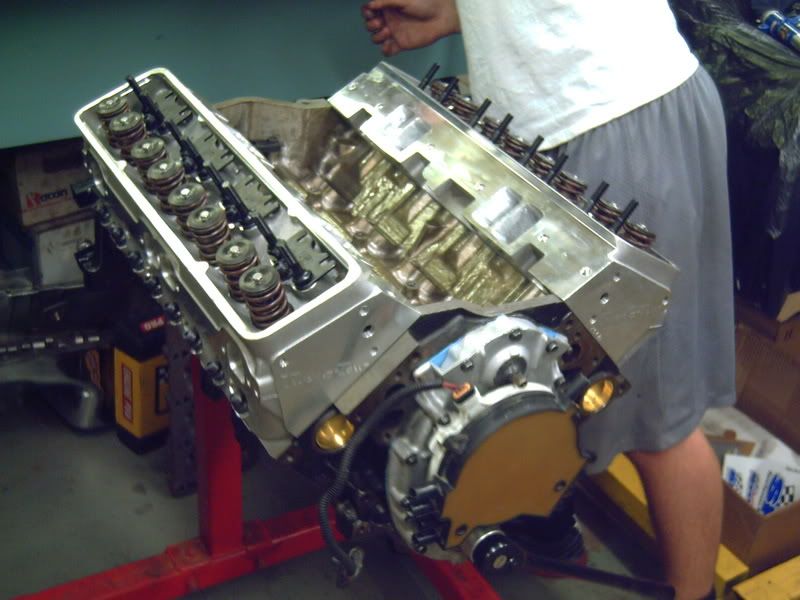

My pride and joy, a 383 LT1, my friend and I did everything excpet the machine work and balance the crank. I have a ton more pics on my friends camera he still has to send them too me, I took alot of pics during assembly.
http://i78.photobucket.com/albums/j9...t/5bb2cf5b.jpg
http://i78.photobucket.com/albums/j9...t/f3fd592f.jpg
http://i78.photobucket.com/albums/j9...t/d7f706b0.jpg
http://i78.photobucket.com/albums/j9...Picture013.jpg
http://i78.photobucket.com/albums/j9...Picture014.jpg
http://i78.photobucket.com/albums/j9...Picture015.jpg
http://i78.photobucket.com/albums/j9...Picture016.jpg
http://i78.photobucket.com/albums/j9...Picture017.jpg

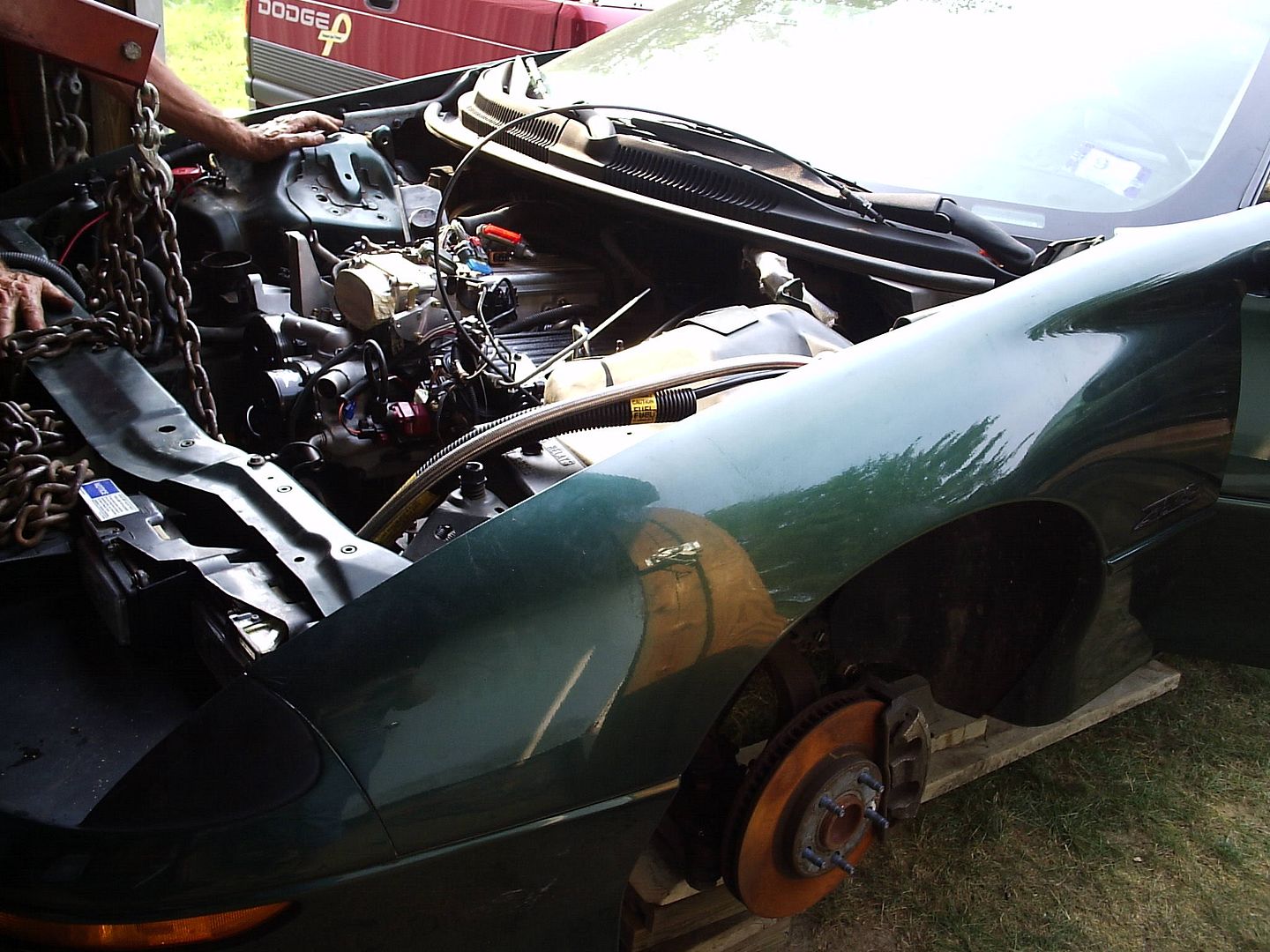

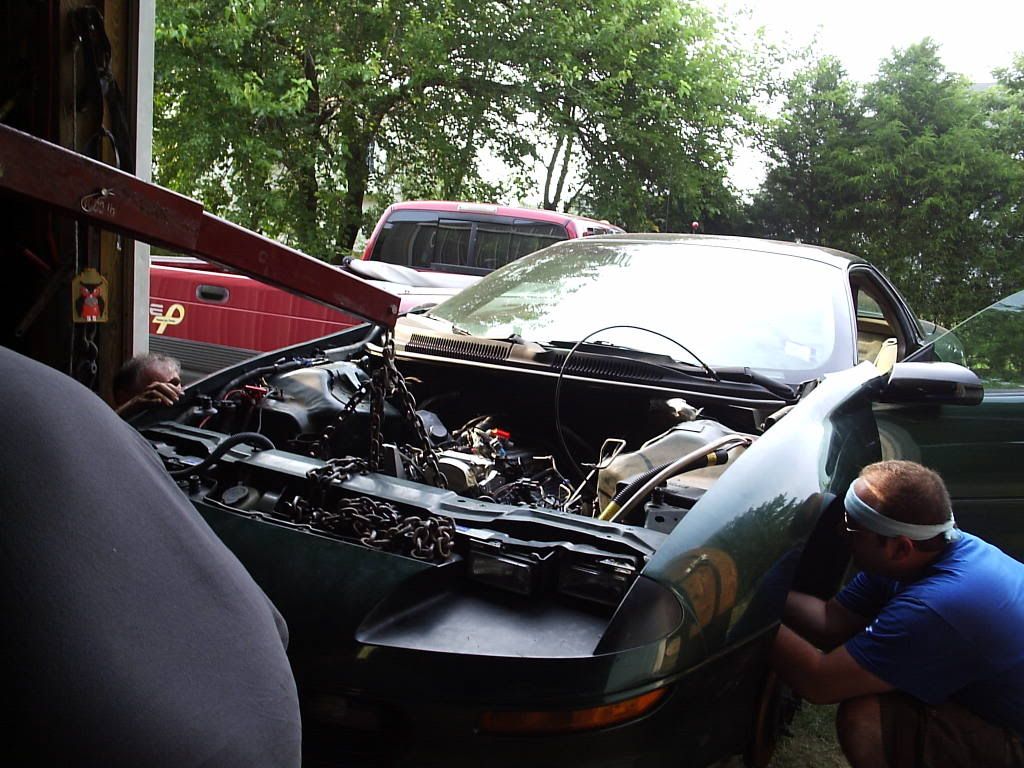

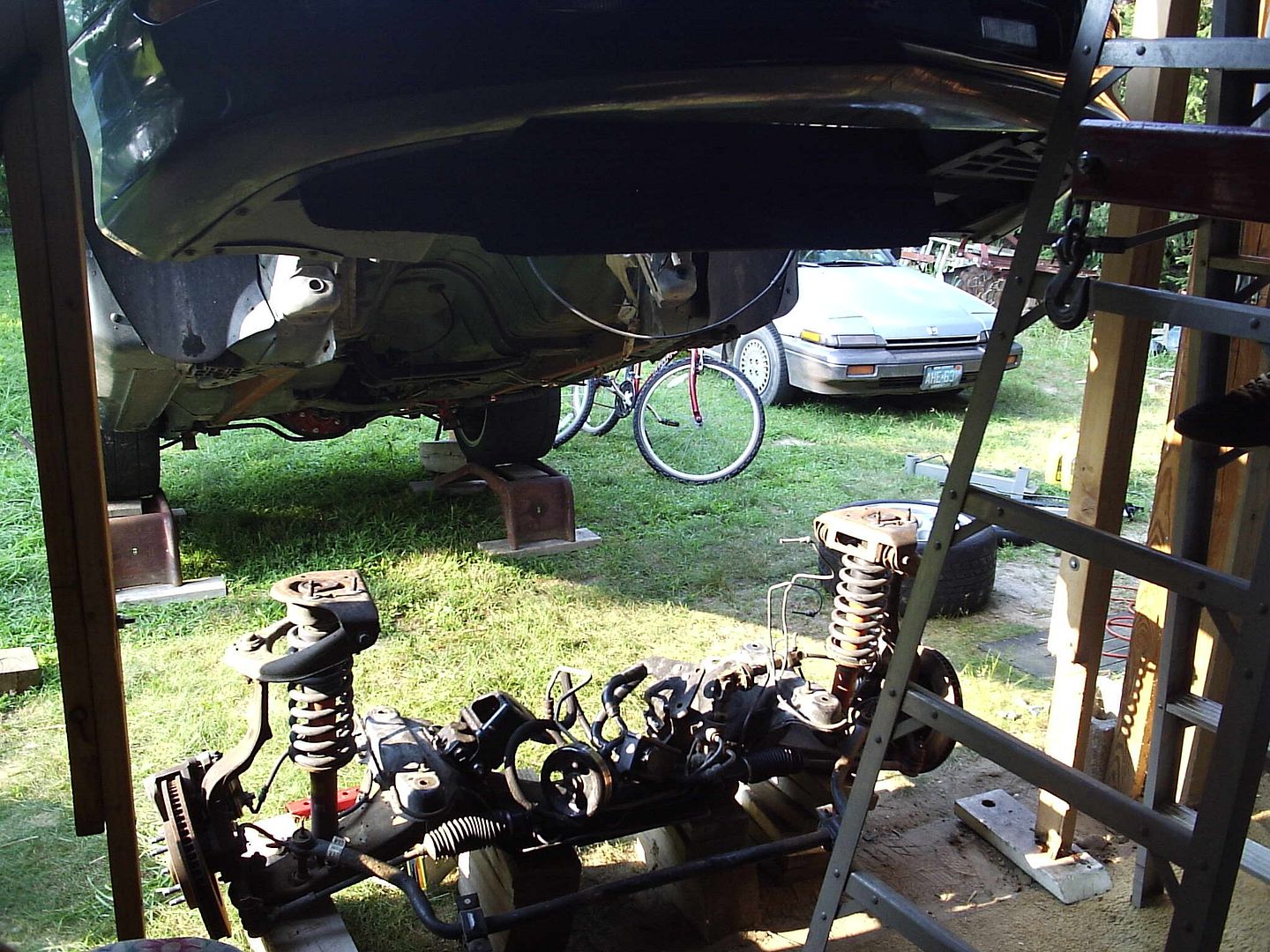

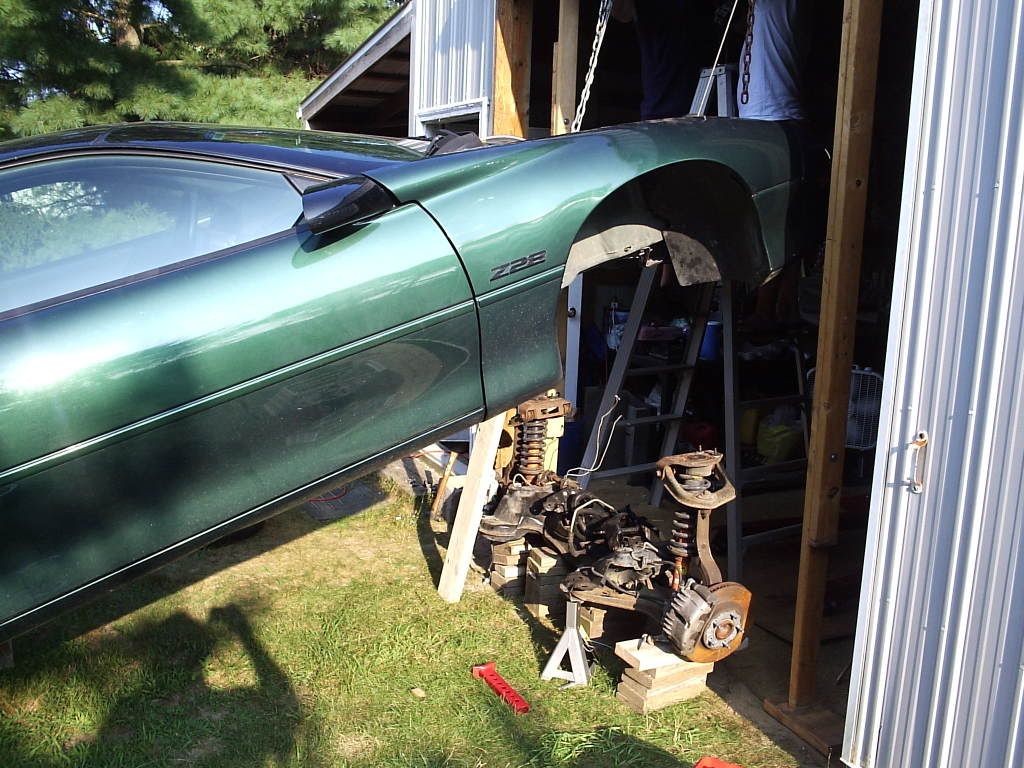

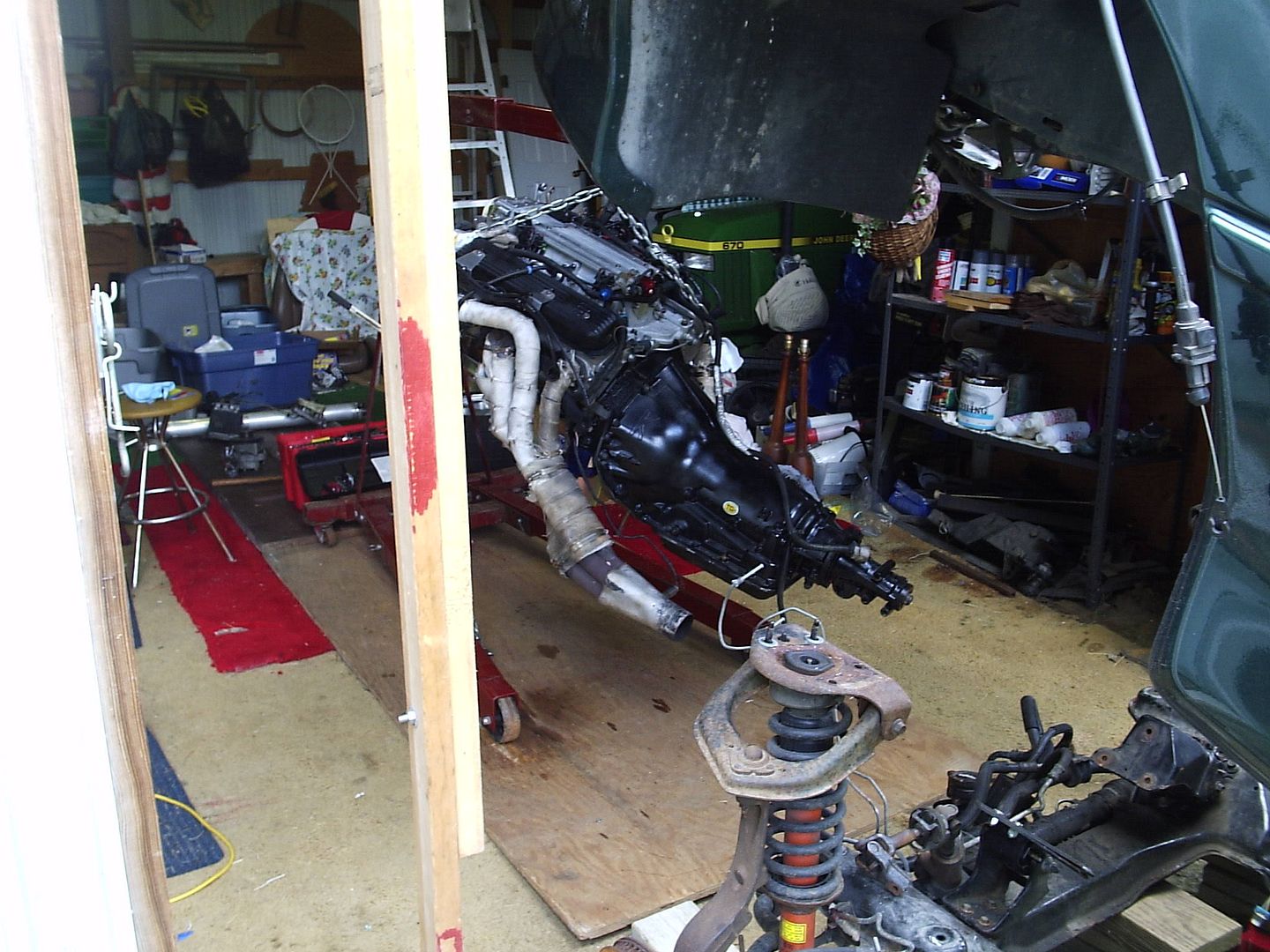

This is how we got the engine in the car at my Grandparents house. I took about 1 hour to get the engine in and drop the car back on the k-member
http://i78.photobucket.com/albums/j9...Picture023.jpg
http://i78.photobucket.com/albums/j9...Picture026.jpg
http://i78.photobucket.com/albums/j9...Picture034.jpg
http://i78.photobucket.com/albums/j9...Picture035.jpg
http://i78.photobucket.com/albums/j9...Picture036.jpg
http://i78.photobucket.com/albums/j9...Picture042.jpg

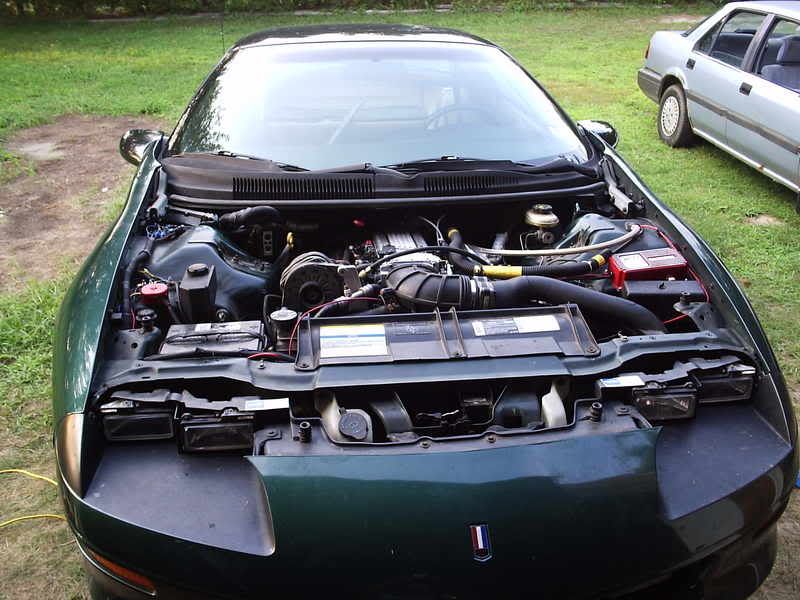

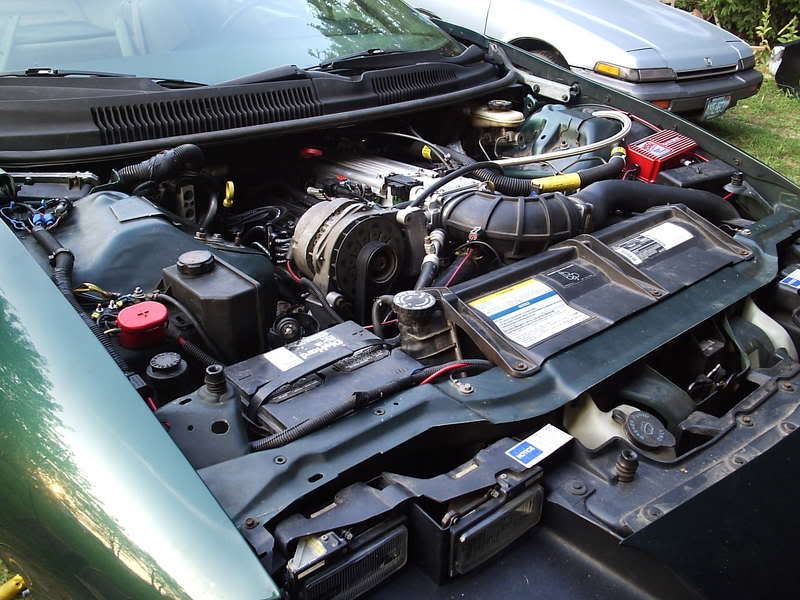

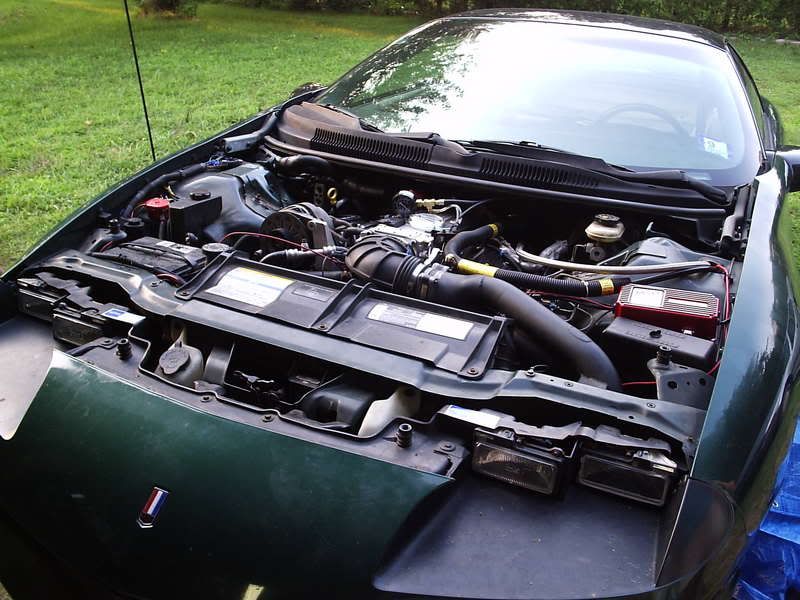

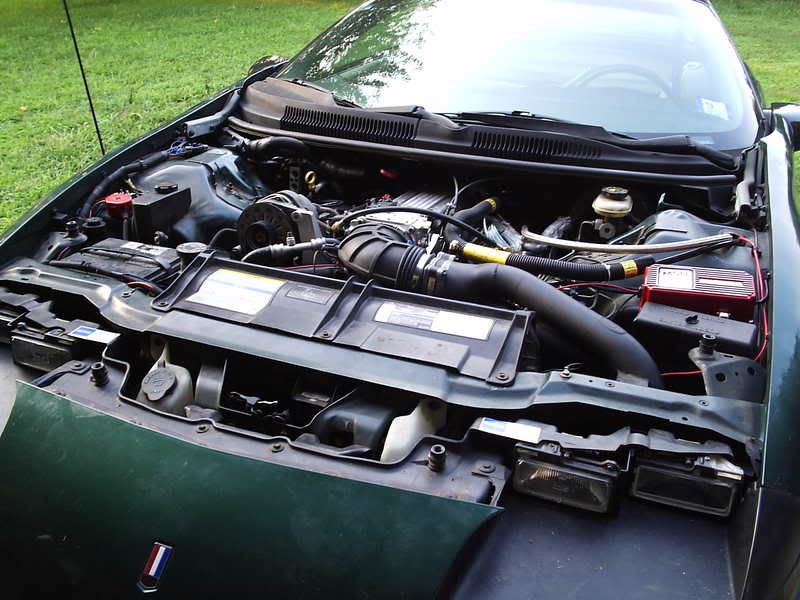

Here it is all finished, I have the hood one but didn't get a pic.
http://i78.photobucket.com/albums/j9...Picture053.jpg
http://i78.photobucket.com/albums/j9...Picture054.jpg
http://i78.photobucket.com/albums/j9...Picture055.jpg
http://i78.photobucket.com/albums/j9...Picture056.jpg
The runs great, I just have a few issues on cold startups I get knock retard in open loop, but as soon as it gets into closed loop all knock retard goes away. I think it has something to do with the tune. I'm going to get a datalog and send it to pcmforless.com since they did the tune. Lets me know what you guys think. I can't wait to take it to the track
