Custom G8 Intake - New Pics

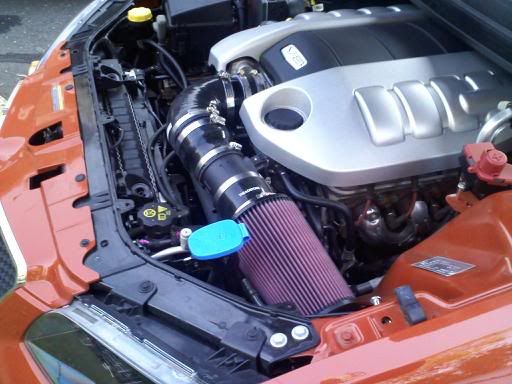

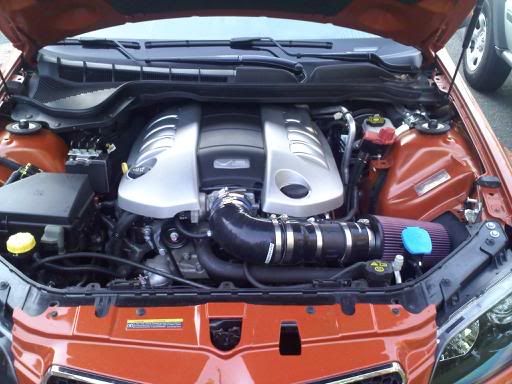

Got some daytime pics with the cellphone.
Big props to UBG for helping getting all the aluminum cut and j0n for assorted part sourcing and some construction assistance
I took the car out for a quick test run and the results speak for themselves. The engine really has a nice growl to it now.

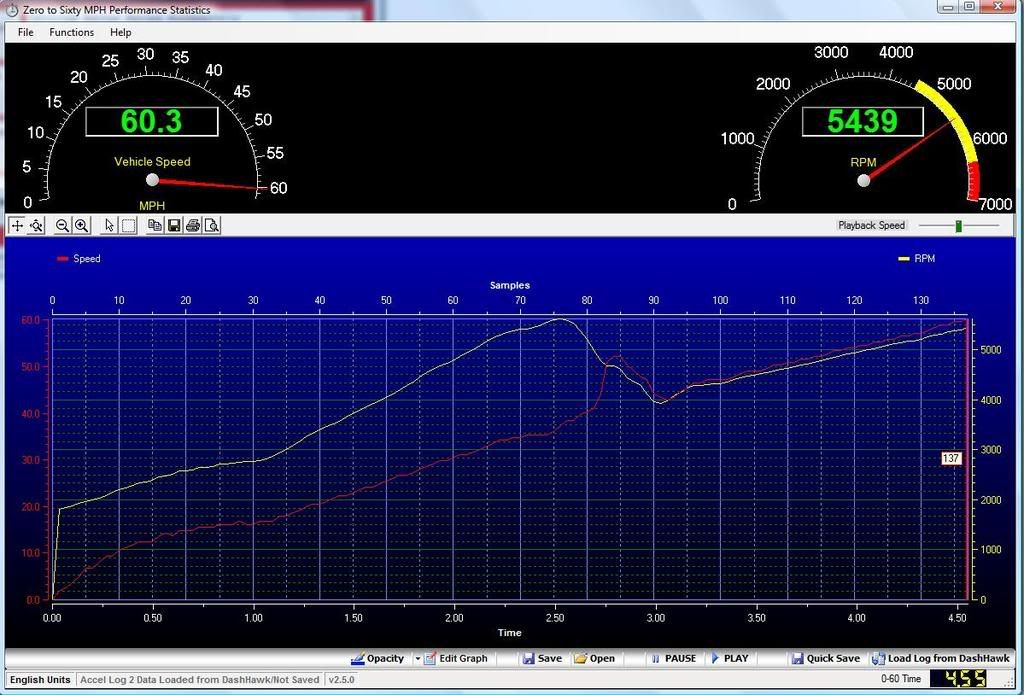

NEW 0-60 time from 10/7/08 - 4.55 sec.
0-60 - 4.7 sec with myself and a 200lb friend riding shotgun. T/C On in drive. Car was shaking the tires in first and chirped second slowing things down a bit. Should have had the T/C off but oh well. Overall I could tell the car was a lot stronger and it never lost traction in first gear like this. Everything cost me a little over a $100 to do.
IAT Temp Diff between ambient: Before - ~13 deg, After - ~6-8 deg.
MAF grams/sec at WOT: Before - ~280, After - ~336
__________________
97 T/A Ram Air Convt
Forever dyno queen / 777rwhp 662 rwtq @ 17lbs / 10.2 @ 140
'24 Corvette Z06
'17 Sierra 2500HD Dmax
'17 Lex LS460
Last edited by Blackbirdws6; 10-07-2008 at 07:55 PM.
Reason: new 0-60
|
|
|
|
10-06-2008, 09:32 PM
|
#2
|
|
The Mayor / 2009 Member of the Year / Moderator
Join Date: Jan 2005
Location: Northwest
Posts: 8,869
|
Lookeeeeen Good Ocho
__________________
1995 Z28 Convertible A4 13.78 @ 100 (CAI, high flow cat, catback, 160 thermo, hypertech, Strano springs, Koni yellows, sway bars, 3 pt. UMI SFC)
2018 Sea Doo GTX - 3 cylinders and das boooooost
Quote:
Originally Posted by BonzoHansen
Is English your 2nd language? Did you graduate high school? Your posts make my head hurt.
|
 Team FARM
|
|
|
|
|
10-06-2008, 09:34 PM
|
#3
|
|
11 Second Club
Join Date: Feb 2008
Location: Edison, NJ
Posts: 4,620
|
Not bad.... trip to home depot?
__________________
1999 Z28 Convertible. 6 speed swap, wide cowl hood, full hockey stripes, and a whining 10 bolt.
2008 Sierra Vortec Max. 6.2 swapped, headers, Magnaflow catback, GMPP CAI, NHT optioned tow package.
2006 GTO, 11.48 @ 118.3
|
|
|
|
|
10-06-2008, 09:34 PM
|
#4
|
|
Meet Coordinator
Join Date: Jan 2008
Location: brick/pt. pleasant beach
Posts: 19,368
|
awesome to see results like that. at first i thought you powdercoated some stuff blue then saw night and cell and chuckled.
|
|
|
|
|
10-06-2008, 09:36 PM
|
#5
|
|
Lord of the rings / 10 Second Club / Meet Coordinator
Join Date: Aug 2004
Location: Millstone Township, NJ
Posts: 6,385
|
Quote:
Originally Posted by NJ Torque
Not bad.... trip to home depot?
|
Actually no home depot parts here. I sourced some 3.5" and 4" aluminum tubing, silicone couplers in various sizes and shapes from ebay, and finished it off with a nice K&N air filter.
__________________
97 T/A Ram Air Convt
Forever dyno queen / 777rwhp 662 rwtq @ 17lbs / 10.2 @ 140
'24 Corvette Z06
'17 Sierra 2500HD Dmax
'17 Lex LS460
|
|
|
|
|
10-06-2008, 09:40 PM
|
#6
|
|
Mongo the Meet Coordinator
Join Date: May 2008
Posts: 16,938
|
Now all you need is a few, say three or four to start off with, gauges!
__________________
Quote:
Originally Posted by KirkEvil
repo bigals turd gen and part it out to a loving home
|
|
|
|
|
|
10-06-2008, 09:55 PM
|
#7
|
|
Lord of the rings / 10 Second Club / Meet Coordinator
Join Date: Aug 2004
Location: Millstone Township, NJ
Posts: 6,385
|
Quote:
Originally Posted by Shownomercy
Now all you need is a few, say three or four to start off with, gauges!
|
Absolutely! I'll even throw in a shift light for good measure...even though it's an auto
__________________
97 T/A Ram Air Convt
Forever dyno queen / 777rwhp 662 rwtq @ 17lbs / 10.2 @ 140
'24 Corvette Z06
'17 Sierra 2500HD Dmax
'17 Lex LS460
|
|
|
|
|
10-06-2008, 09:57 PM
|
#8
|
Join Date: Jul 2004
Location: West Long Branch
Posts: 13,598
|
Awesome! Very cool man. Are you gunna build a box around the filter to isolate it?
__________________
2/20/2013: They Day the ****s Stopped
|
|
|
|
|
10-06-2008, 10:16 PM
|
#9
|
|
Lord of the rings / 10 Second Club / Meet Coordinator
Join Date: Aug 2004
Location: Millstone Township, NJ
Posts: 6,385
|
Quote:
Originally Posted by BigAls87Z28
Awesome! Very cool man. Are you gunna build a box around the filter to isolate it?
|
At some point I will but this will do for now. I have some sheet metal and the insulation material so I can mess with it. There is a very little bit of aluminum used and it was used just to connect the soft silicone pieces together. The temps were def. down from the stocker so I'm on my way. I really could justify spending $300+ on an intake setup which looks just about the same as what I did.
__________________
97 T/A Ram Air Convt
Forever dyno queen / 777rwhp 662 rwtq @ 17lbs / 10.2 @ 140
'24 Corvette Z06
'17 Sierra 2500HD Dmax
'17 Lex LS460
|
|
|
|
|
10-07-2008, 07:33 AM
|
#10
|
|
Lord of the rings / 10 Second Club / Meet Coordinator
Join Date: Aug 2004
Location: Millstone Township, NJ
Posts: 6,385
|
bump for new pics
__________________
97 T/A Ram Air Convt
Forever dyno queen / 777rwhp 662 rwtq @ 17lbs / 10.2 @ 140
'24 Corvette Z06
'17 Sierra 2500HD Dmax
'17 Lex LS460
|
|
|
|
|
10-07-2008, 01:26 PM
|
#11
|
|
NJFBOA Co-Founder
Join Date: Jul 2004
Location: All up in your kool aid!
Posts: 12,235
|
Is it something you can quick swap back the stock air box? I would be interested in seeing a side by side dyno comparison on that. I am sure you picked up a bunch over the stock air box w/ silly straw air silencer. lol
|
|
|
|
|
10-07-2008, 05:01 PM
|
#12
|
Join Date: Jun 2007
Location: Arm pit of the world... NJ
Posts: 2,677
|
Look great Brian. You've peaked my interest. How much do you have invested?
__________________
John
|
|
|
|
|
10-07-2008, 06:41 PM
|
#13
|
|
Lord of the rings / 10 Second Club / Meet Coordinator
Join Date: Aug 2004
Location: Millstone Township, NJ
Posts: 6,385
|
Quote:
Originally Posted by NJSPEEDER
Is it something you can quick swap back the stock air box? I would be interested in seeing a side by side dyno comparison on that. I am sure you picked up a bunch over the stock air box w/ silly straw air silencer. lol
|
Yea I could swap back in prob under 5 min.
Featherburner : Maybe just about $150 which could have been done a bit cheaper but I had to order diff. parts which cost me shipping.
__________________
97 T/A Ram Air Convt
Forever dyno queen / 777rwhp 662 rwtq @ 17lbs / 10.2 @ 140
'24 Corvette Z06
'17 Sierra 2500HD Dmax
'17 Lex LS460
|
|
|
|
